Epoxy Injection Resins
WEBAC® B40
- Classic Line

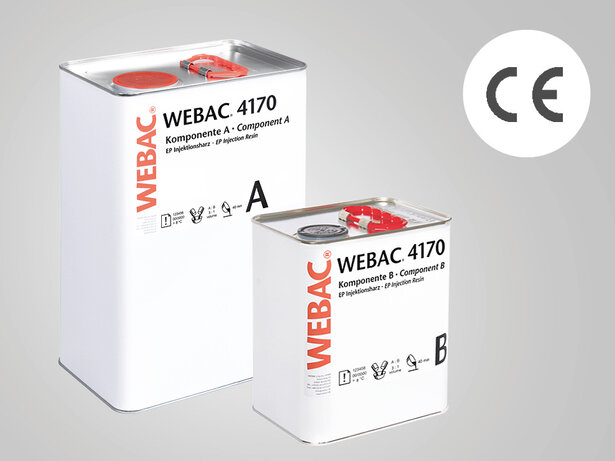

WEBAC® 4170
WEBAC 4170 is a CE-certified, very low-viscosity epoxy injection resin with good penetration. It penetrates even the finest cracks, cures to a solid state, and ensures a durable bond through optimal wetting and adhesion, even on dry or wet crack surfaces. It is used for closing, sealing, and structural force-fitting of structural components and is also suitable for crack filling.
![[Translate to English:] Rissinjektion](/fileadmin/_processed_/f/8/csm_4170_1__de96943c7e.png)
![[Translate to English:] Rissverguss](/fileadmin/_processed_/8/d/csm_4170_2__b409209516.png)
- Crack repair according to DIN EN 1504-5
- Repair of dry and wet cracks
- Crack impregnation
- Injection of construction joints
- Solidification of open-pored concrete structures (i. a. tamped concrete)
Properties
- Epoxy-based injection resin
- Very low viscosity
- Suitable for dry and wet crack edges
- Good adhesion
- Total solid
Techical Data
| Density, 20 °C DIN ISO 2811 | Comp. A | ≈ 1.1 g/cm³ ≈ 1.0 g/cm³ | ||||||
| Viscosity of mixture WEBAC test specification based on DIN ISO 3219 | 21 °C > 120 mPa.s | |||||||
| Application temperature Building structure and material | > 10 °C | |||||||
| Compressive strength 7 d, 21 °C, DIN ISO 604 | ≈ 55 MPa (N/mm²) | |||||||
| E modulus 7 d, 21 °C, DIN ISO 527 | ≈ 750 MPa (N/mm²) |
Downloads & Documents
Technical Data Sheets|PDF
WEBAC® 4170
Direct download:
Safety Data Sheets|PDF
WEBAC® 4170 Comp. A
Direct download:
Safety Data Sheets|PDF
WEBAC® 4170 Comp. B
Direct download:
